Clearview Healthcare

OPTIMA7500AB-3C-LR

Mattress	AGC7500-3C-F
Cell type	Air & Gel Type
Material	PU
Dimension	88×192×10㎝(35×76×4")
Weight	17㎏
Accessary	Independence Air Loss Cover · Manual Pump
Pump	Optima Superb

These superior mattress system offer both alternating pressure therapy and low air loss.
The pressure and alternating cycle time can be set in order to maximize therapy and comfort for each individual.
The Left & Right alternating pad on the bottom is designed to make higher & better pressure relief.

Low air loss therapy line provies excellent ventilation and reducing the build up of moisture that can cause skin maceration.

    L&R pad on the bottom

      All optima mattress series has
      L&R pad on the bottom.
      L&R pad change user’s body
      left and right for better
      pressure relidf.

      OPTIMA7500AB-3C-LR

      Special inner cover to hold
      each section and fold to
      easy carry.
    All around zippered cover has
      low loss therapy zone on the center.


This mattress provides a solution for individuals who require skin/soft tissue protection or have other therapeutic needs.
Alternating system of Optima Superb pump maximize pressure relief and provides individualized skin protection.

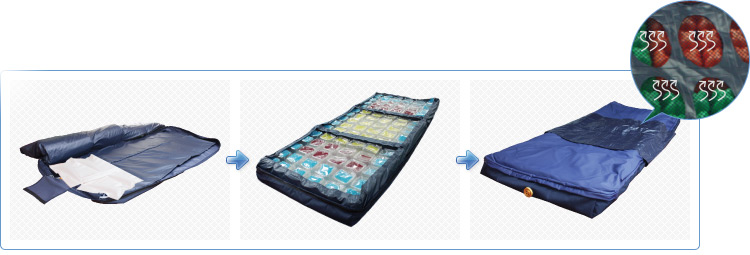

Mattress and L&R pad are foldable as 4 steps for easy carry.

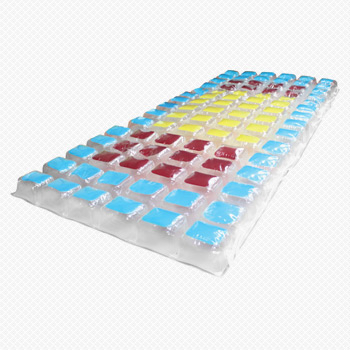

The mattress consists of 10cm Air & gel cells(3sections), Left & Right alternating pad and waterproof and fire retardant cover with low air loss function.

Portable bag for easy carry

3 different pressure zones with different hardness of gel on the cells for head, body and leg provide better pressure relief and comfort.


Head & Neck	Waist	Leg

Power supply	AC100~120V, 50/60㎐ AC220~240V, 50/60㎐ Supply
Pressure range	30~150㎜Hg (±10%)
Air volume	2~8liter
Cycle	10 ~ 30min
Dimension	31×12.5×19.3㎝
Weight	2.05㎏

1 · 2 One touch quick release connector
3 · 4 Detachable power cord

5 Spring lined air tubes prevent kinks and disruption of air flow.

Optima Superb 1 pump is the most advanced air pressure pump in the Clearview series.
The high flow multi-function air control unit provides effective pressure relief and comfort to user.
5 adjustable levels alternating cycle times 10, 15, 20, 25, 30 minutes and adjustable pressure function help to find the best condition.


	Dynamic mode		Power Reset
Standard alternating pressure mode in which not all cells are inflated all of the time.		Power ON/OFF button.
	Soft air mode		Pressure Level
When patient need softer status than standard alternating mode for better comfort.		Adjust pressure level based on patient’s status like soft, medium and strong.
	Care mode		Cycle
Makes the mattress surface firm for easy care for the patient. 30minutes later return to Dynamic mode automatically.		Adjust alternating cycle 10, 15, 20, 25, 30minutes.
	Positioning mode		Air loss
Lying down or sitting at more than 30minutes.		Air loss for more dryness of mattress. It is possible in all modes.s
